Technical data
Moreless| Pitch (mm) | 2,54 |
| Mating pin size (range) | ☐ 0,64 |
| Pincount | 6, 8, 10, 12 ... 64 |
| Gender | Female |
| Polarising | yes |
| Material contact | Copper alloy |
| Plating contact | Selective Au |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 250 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| No of rows | 2 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | IDC |
| AWG | 26, 28 |
| Row distance (mm) | 2,54 |
| Packaging | Standard |

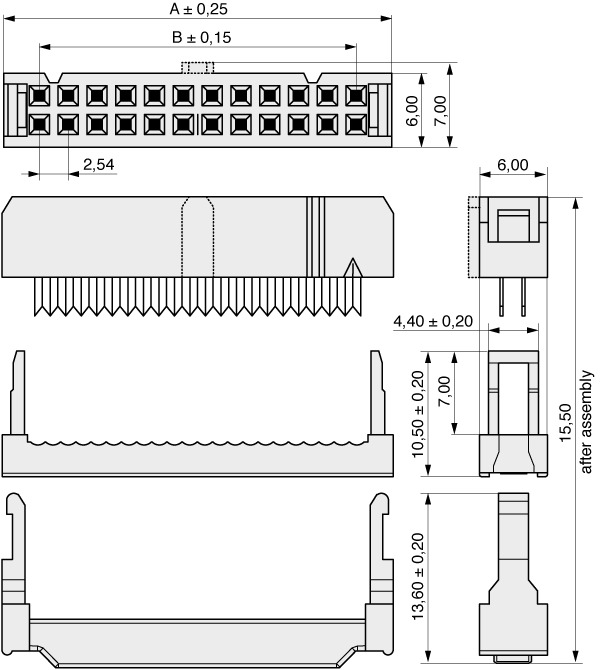

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 006 | 12,32 | 5,08 |
| 008 | 14,86 | 7,62 |
| 010 | 17,34 | 10,16 |
| 012 | 19,94 | 12,70 |
| 014 | 22,48 | 15,24 |
| 016 | 25,02 | 17,78 |
| 018 | 27,56 | 20,32 |
| 020 | 30,10 | 22,86 |
| 024 | 35,18 | 27,94 |
| 026 | 37,72 | 30,48 |
| 030 | 42,80 | 35,56 |
| 034 | 47,88 | 40,64 |
| 040 | 55,50 | 48,26 |
| 050 | 68,20 | 60,96 |
| 060 | 80,90 | 73,66 |
| 064 | 85,98 | 78,74 |
