Technical data
Moreless| Pitch (mm) | 2,00 |
| Mating pin size (range) | ☐ 0,50 |
| Pincount | 8, 10, 12, 14 ... 56 |
| Gender | Female |
| Polarising | yes |
| Material contact | Phosphor bronze |
| Plating contact | Selective Au |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 1,5 A |
| Rated voltage | 150 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| No of rows | 2 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | IDC |
| AWG | 28 |
| Row distance (mm) | 2 |
| Packaging | Standard |

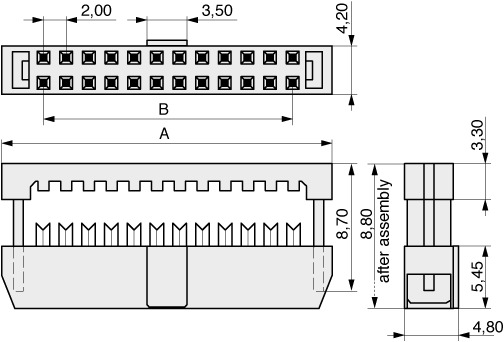

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 008 | 13,20 | 6,00 |
| 010 | 15,20 | 8,00 |
| 012 | 17,20 | 10,00 |
| 014 | 19,20 | 12,00 |
| 016 | 21,20 | 14,00 |
| 018 | 23,20 | 16,00 |
| 020 | 25,20 | 18,00 |
| 022 | 27,20 | 20,00 |
| 024 | 29,20 | 22,00 |
| 026 | 31,20 | 24,00 |
| 028 | 33,20 | 26,00 |
| 030 | 35,20 | 28,00 |
| 034 | 39,20 | 32,00 |
| 036 | 41,20 | 34,00 |
| 040 | 45,20 | 38,00 |
| 044 | 49,20 | 42,00 |
| 050 | 55,20 | 48,00 |
| 056 | 61,20 | 54,00 |
