Technical data
Moreless| Pitch (mm) | 1,50 |
| Pincount | 2, 3, 4, 5 ... 15 |
| Gender | Female |
| Polarising | yes |
| Locking | No |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 50 V RMS / V DC |
| Withstand voltage | 500 V RMS for 1 Minute |
| Operating temperature | -25°C to +85°C |
| No of rows | 1 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | Crimp |
| AWG | 26, 28, 30 |
| Packaging | Standard |

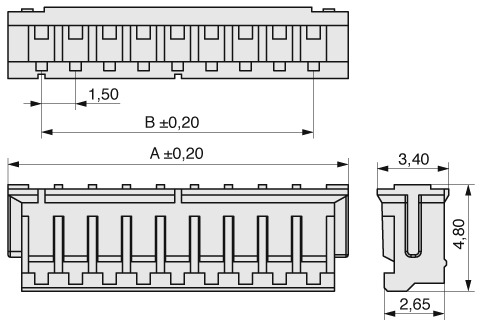

Drawing / Dimensions
Moreless
| Pincount | A | B |
|---|---|---|
| 002 | 4,50 | 1,50 |
| 003 | 6,00 | 3,00 |
| 004 | 7,50 | 4,50 |
| 005 | 9,00 | 6,00 |
| 006 | 10,50 | 7,50 |
| 007 | 12,00 | 9,00 |
| 008 | 13,50 | 10,50 |
| 009 | 15,00 | 12,00 |
| 010 | 16,50 | 13,50 |
| 011 | 18,00 | 15,00 |
| 012 | 19,50 | 16,50 |
| 013 | 21,00 | 18,00 |
| 014 | 22,50 | 19,50 |
| 015 | 24,00 | 21,00 |
