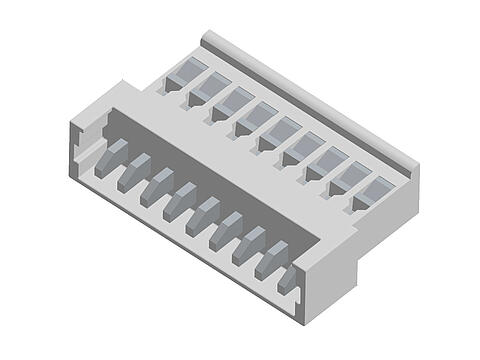

Technical data
Moreless| Pitch (mm) | 1,25 |
| Pincount | 2, 3, 4, 5 ... 16 |
| Gender | Male |
| Polarising | yes |
| Locking | Friction lock |
| Material insulator | Thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 125 V RMS / V DC |
| Withstand voltage | 250 V RMS for 1 Minute |
| Operating temperature | -40°C to +85°C |
| Orientation to PCB | Parallel, Vertical |
| No of rows | 1 |
| Cap | With cap, With kapton tape, Without cap |
| Connection type | Crimp |
| AWG | 28, 30, 32 |
| Packaging | Standard |
Drawing / Dimensions
Moreless
| Pincount | A | B | MPE_C_STECKSEITE |
|---|---|---|---|
| 002 | 4,20 | 1,25 | 2,96 |
| 003 | 5,45 | 2,50 | 4,21 |
| 004 | 6,70 | 3,75 | 5,46 |
| 005 | 7,95 | 5,00 | 6,71 |
| 006 | 9,20 | 6,25 | 7,96 |
| 007 | 10,45 | 7,50 | 9,21 |
| 008 | 11,70 | 8,75 | 10,46 |
| 009 | 12,95 | 10,00 | 11,71 |
| 010 | 14,20 | 11,25 | 12,96 |
| 011 | 15,45 | 12,50 | 14,21 |
| 012 | 16,70 | 13,75 | 15,46 |
| 016 | 21,70 | 18,75 | 20,46 |
