Technical data
Moreless| Pitch (mm) | 1,27 |
| Mating pin size (range) | ☐ 0,44 |
| Pincount | 10, 12, 14, 16 ... 80 |
| Gender | Female |
| Polarising | no |
| Locking | No |
| Material contact | Phosphor bronze |
| Plating contact | Au, Sn |
| Material insulator | High temp. thermoplast UL94V-0 |
| Rated current IEC | 1,0 A |
| Rated voltage | 100 V RMS / V DC |
| Withstand voltage | 300 V RMS for 1 Minute |
| Operating temperature | -40°C to +105°C |
| Max. processing temper. | 260°C for 10 seconds |
| Board termination |
SMD Gull Wing
|
| Orientation to PCB |
Parallel
|
| No of rows | 2 |

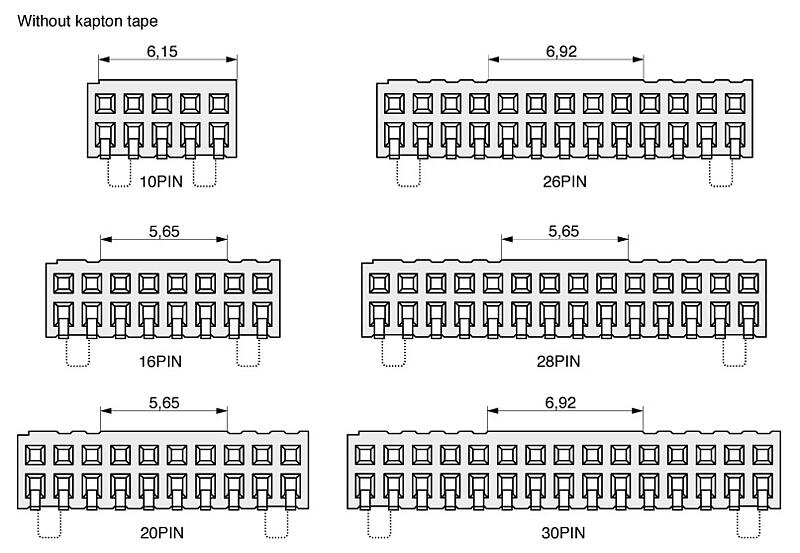

| Cap | With kapton tape, Without cap |
| Row distance (mm) | 1,27 |
| Positioning peg | With positioning peg, Without positioning peg |
| Contact style | Die cut |
| Socket layout |
DIL strip (Dual-in-line)
|
| Packaging | Reel, Tube |
