419-5 | MPE-Garry GmbH

419-5

Version with flange for vertical mounting.

Pincount	2, 4, 6, 8, 10
Material contact	Phosphor bronze
Plating contact	Au
Material insulator	Thermoplast UL94V-0
Rated current IEC	1,0 A
Rated voltage	125 V RMS / V DC
Withstand voltage	500 V RMS for 1 Minute
Operating temperature	-40°C to +70°C
Max. processing temper.	230°C for 5 seconds
Board termination	Through hole
Orientation to PCB	Vertical
Cap	With cap, With kapton tape, Without cap
No of positions	04, 06, 08, 10
Packaging	Bulk, Not specified, Paper carrier tape, Reel ... Tube

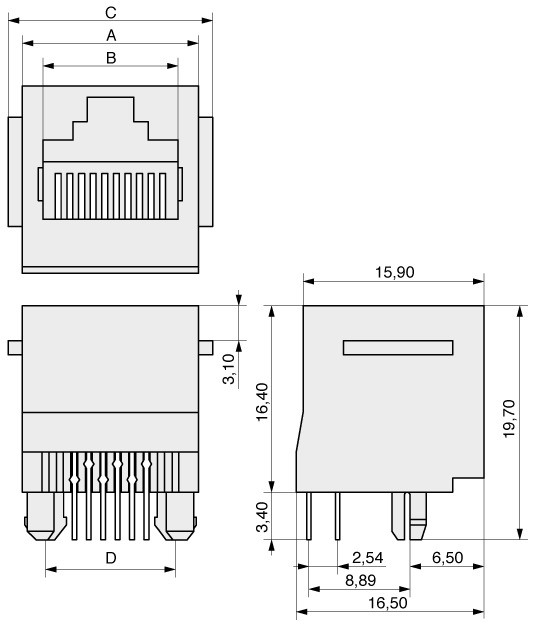

No of positions	Pincount	A	B	C	D
004	004	11,40	7,90	13,85	7,62
006	002	13,45	10,00	15,85	10,16
006	004	13,45	10,00	15,85	10,16
006	006	13,45	10,00	15,85	10,16
008	004	15,50	10,00	18,00	10,16
008	006	15,50	10,00	18,00	10,16
008	008	15,50	11,90	18,00	11,43
010	010	15,50	11,90	18,00	11,43
