Order code not found. You may mean this product:
42R42-3

Built-in device plug with fuse insert (5x20mm) and voltage selector. Fuse rating: max 1.6W, 6.3A, 250VAC


Your search was with an old part number. Here is the actual version.
Compare product

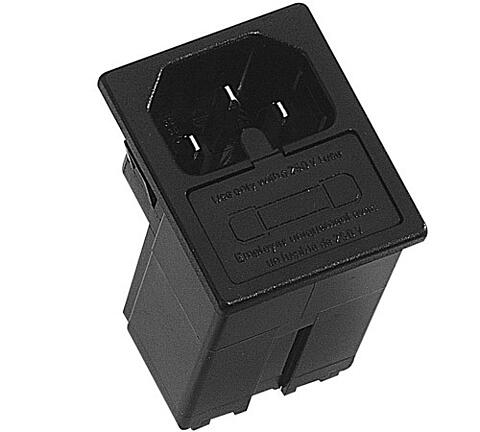

Illustration
Technical data
Moreless
Rated current IEC 6,3 A
Rated current UL 5,0 A
Connection type Plug-in connection, solder termination
Design Inlet Inlet
Switch Without
Voltage selector With
Approvals
CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR   CE, UL, VDE, cUR
Color black
Contact arrangement C14 für eine Sicherung, C14 für zwei Sicherungen, C16 für eine Sicherung, C16 für zwei Sicherungen ... C18 für zwei Sicherungen
Snap-In Dimension (A) 1,50, 2,00, 2,50, Andere Werte auf Anfrage
Connection Type Plug-in connection 4,8 (4), Plug-in connection 6,3 (5), solder connection 2,8 (2)
Configurate Your Product
Order code
42R4231?????
Please finish Product configuration first

Connection Type
Contact arrangement
Snap-In Dimension (A)
